Aspect is a 12mm laminate built on a Lo-Swell HDF black core and rated AC4 — hard-wearing enough for hallways, living areas and the general traffic of a busy family home. The surface is high-definition digital print finished with a super-matte coating, and every plank carries painted micro-bevel (V4) edges on all four sides.
The water resistance is the part worth reading properly. Aspect’s core is rated water resistant for 72 hours and that figure has been independently tested — its T-seam swell and seepage results exceed the 80-hour test method under EN 13329:2016 + A1:2017, ISO 24336:2005 and NALFA. It is a measured result, not a marketing line. It is not a waterproof floor, and no laminate is: the core is HDF, and permanent standing water will still damage it. What 72 hours buys you is time. Protection comes from three things working together: a tight T-seam click profile, moisture-protected painted bevel edges, and the treated core itself. For bathrooms, laundries and powder rooms, check with your local Building Code to confirm suitability before you install.
Aspect is made in three plank formats and the surface differs between them. The European Oak décors are 236mm wide and carry Embossed in Register (EIR) texture, so the grain you see is also the grain you feel — available 1518mm long at 1.79 m² per carton over 5 planks, or 2260mm long at 2.13 m² per carton over 4 planks. The Australian timber décors, Blackbutt and Spotted Gum, are 194mm wide and 2260mm long at 1.75 m² per carton over 4 planks, with a smooth, unembossed surface.
The floor is rated P3 for slip resistance under AS 4586:2013 Appendix A, and its fire test results are CHF 4.4 kW/m², HF-30 5.4 kW/m² and a smoke value of 12% minimum. It is FloorScore certified for indoor air quality and is suitable for installation over “In-Slab” hydronic heating only.
Aspect is covered by a 20 year limited structural warranty and a 20 year limited residential coating warranty. Colour-matched trims, coloured scotia and stair nosing are available to finish the job — ask us for current availability when you order.
Request your quote now and plan smarter:
Size
1518 x 236 x 12mm. Pack: 1.79m2 / Ctn, 5 planks.
Width
236mm planks, European Oak décors.
Core & profile
Lo-Swell HDF Black Core. 72hr water-resistant rated, AC4 laminate. Angle/Angle click profile. Micro Bevel V4, painted edges, 4 sides.
Surface
High Definition digital print, realistic timber visuals and textures. European Oak décor with Embossed in Register (EIR) surface. Super matte coating.
Swell testing
Exceeds EN 13329:2016 + A1:2017, ISO 24336:2005 and NALFA. T Seam – Swell & Seepage Test >80hrs, independently tested.
Slip rating
AS 4586:2013 Appendix A, P3.
Fire test
CHF Value 4.4kW/m2. HF-30 Value 5.4kW/m2. Smoke Value 12% min.
VOC
FloorScore certified — Aspect WR Laminate VOC declaration.
Warranty
20 year Limited Structural Warranty & 20 year Limited Residential Coating Warranty.
Underfloor heating
Suitable for installation over “In-Slab” Hydronic Heating only.
Wet areas
Please check with your local Building Code to confirm suitability for installation in bathrooms, laundries and powder rooms.
An extensive range of trims, coloured scotia and stair nosing is available, please check for availability.
Interior 72hr water resistant warranty incorporating a 3-step process: a T Seam tight lock click profile, moisture-protected painted bevel edges and an independently tested water-resistant core. High definition realism with unique pattern repeats.
Size: 1518 x 236 x 12mm, 1.79m2 / Ctn, 5 planks, AC4.
236mm European Oak décor with Embossed in Register (EIR) surface.
Warranty
20 year Limited Structural Warranty & 20 year Limited Residential Coating Warranty.
Wet areas
Please check with your local Building Code to confirm suitability for installation in bathrooms, laundries and powder rooms.
The 1518mm board is the shorter of the two 236mm-wide formats, which makes it easier to handle in smaller rooms and around corners while keeping the wide-plank look. European Oak décor with Embossed in Register texture, so the grain you see is also the grain you feel. Available in 236mm W x 1518mm L, 12mm thick.
Two formats in this section — check the size against the colour you choose.
2260 x 236 x 12mm — Pack: 2.13m2 / Ctn, 4 planks. European Oak décors with an Embossed in Register (EIR) surface.

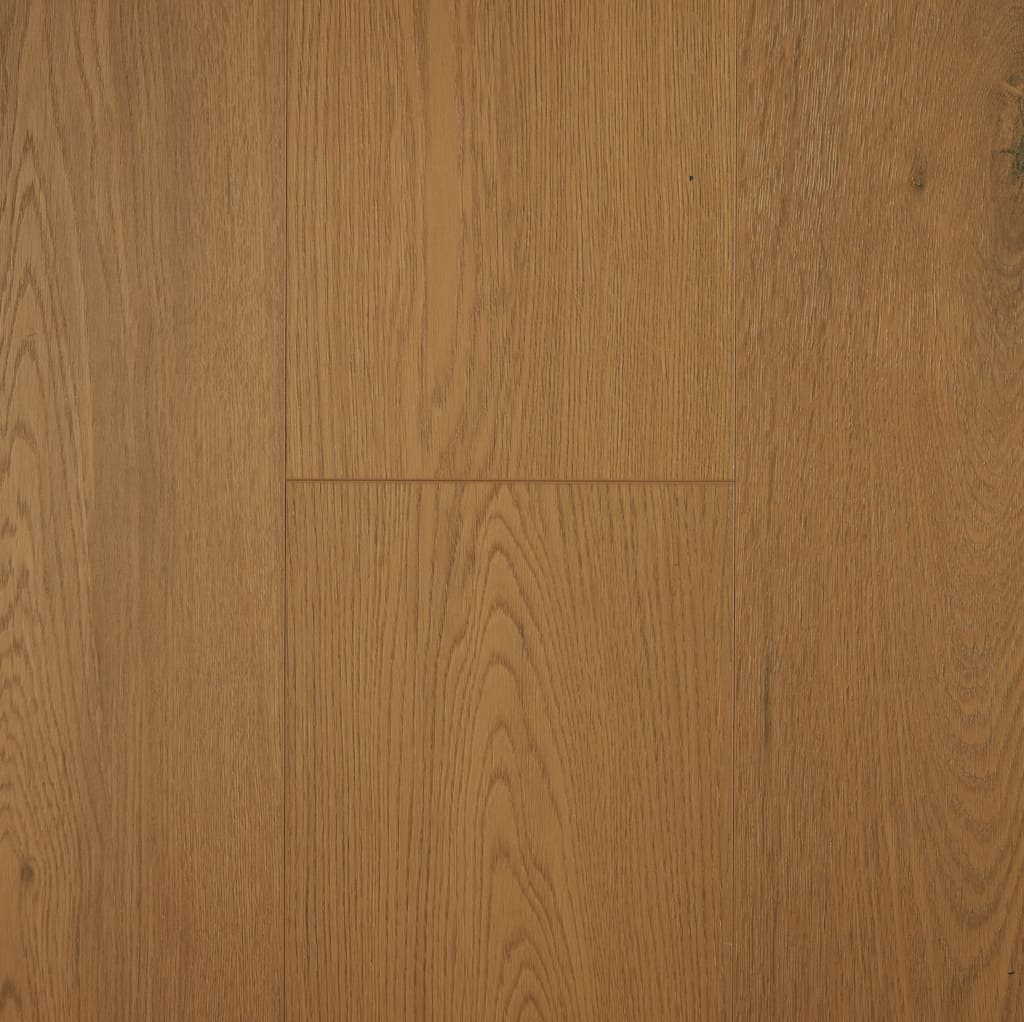

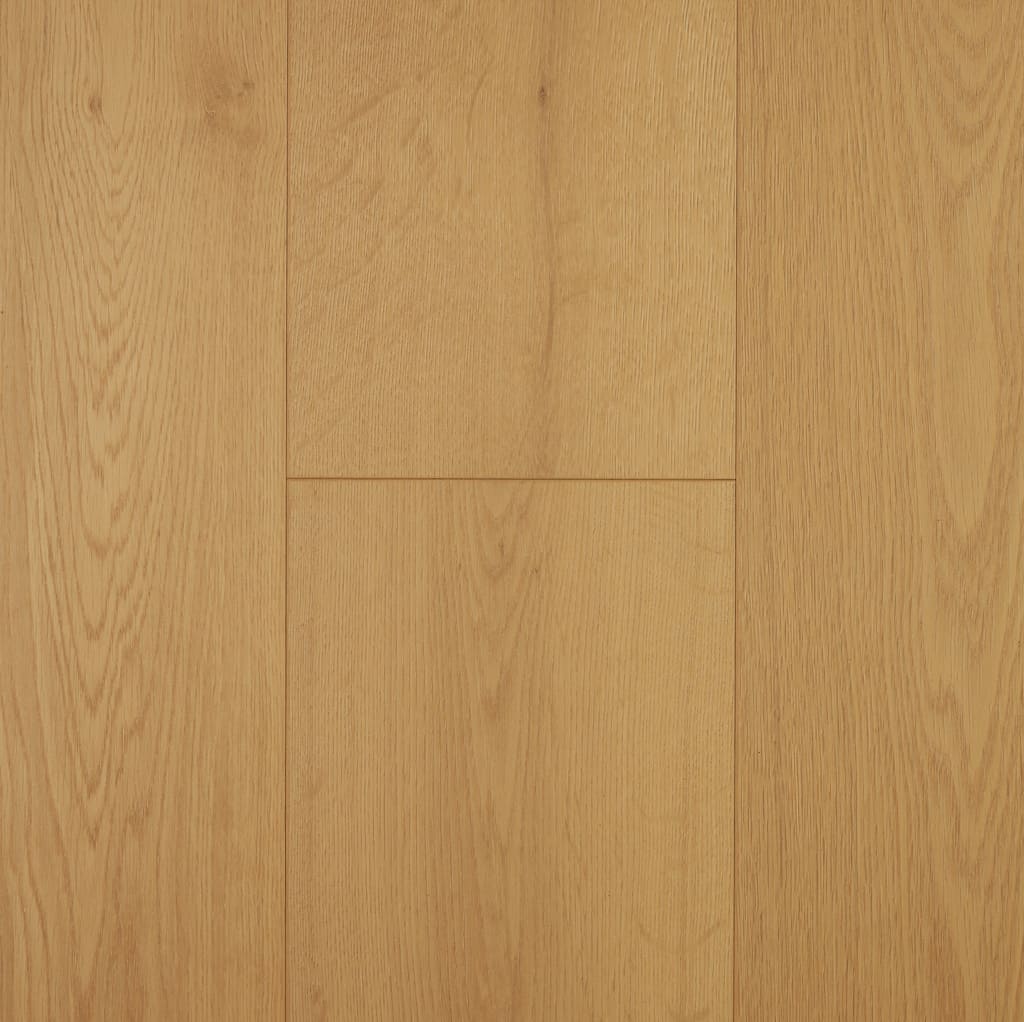

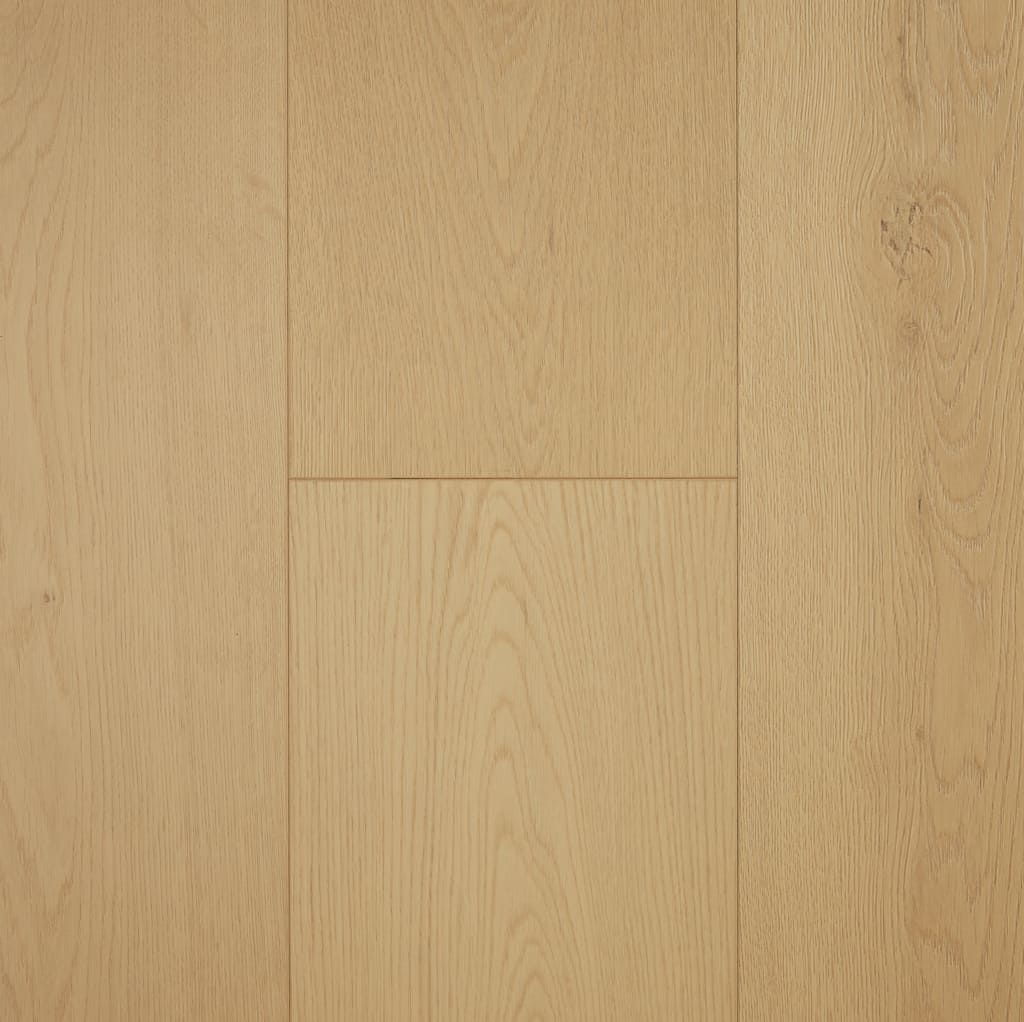

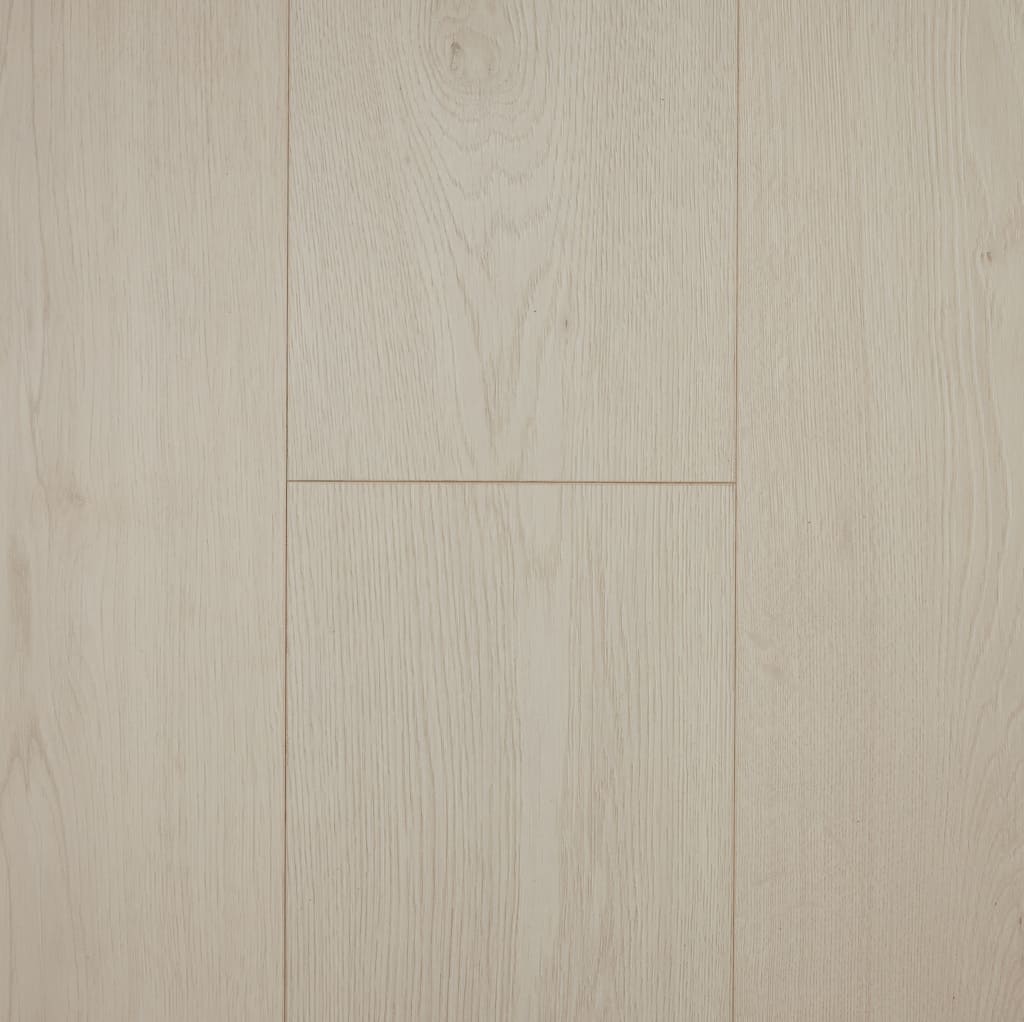

Colours: Acacia, Hazelnut, Honeybee, Silverwood, Surfside.
2260 x 194 x 12mm — Pack: 1.75m2 / Ctn, 4 planks. Australian timber décors with a smooth surface, no embossing.

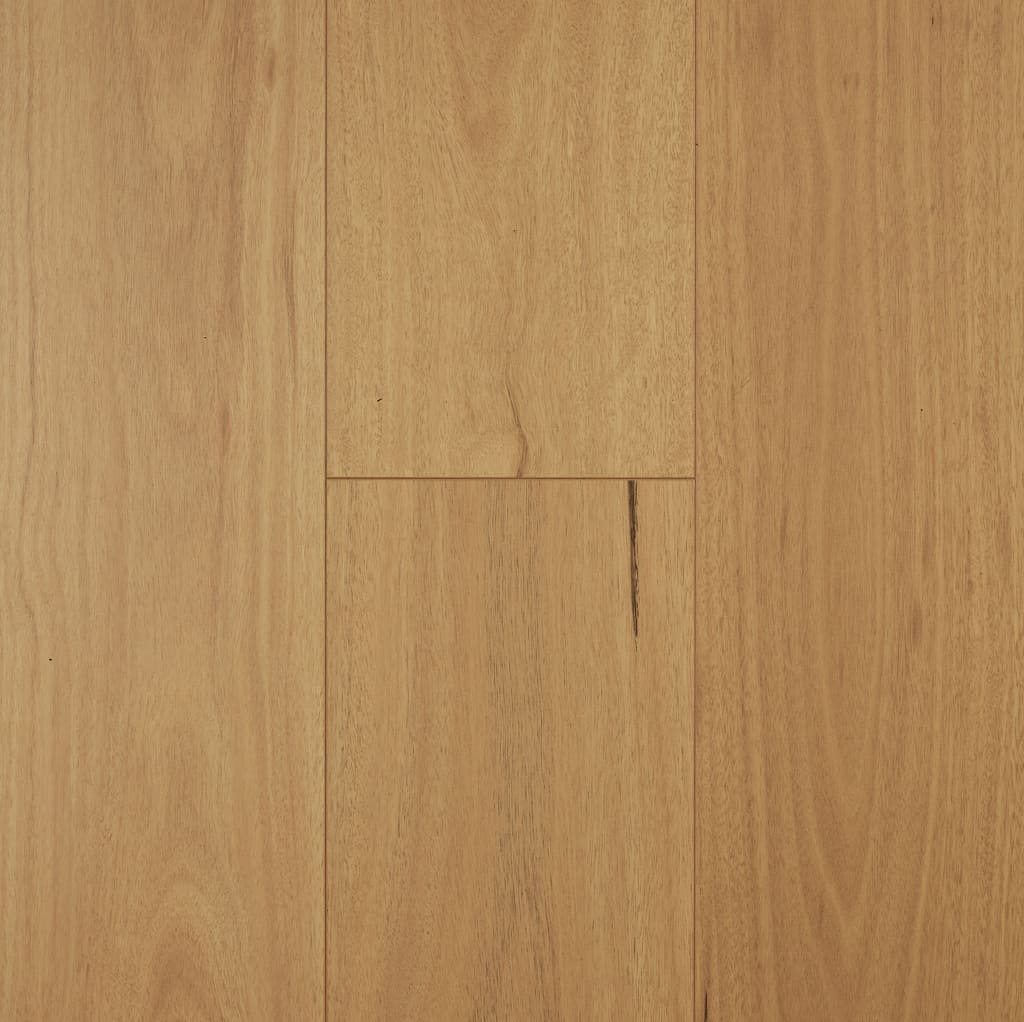

Colours: Blackbutt, Spotted Gum.
Core & profile
Lo-Swell HDF Black Core. 72hr water-resistant rated, AC4 laminate. Angle/Angle click profile. Micro Bevel V4, painted edges, 4 sides.
Surface
High Definition digital print, realistic timber visuals and textures. Super matte coating. EIR embossing on the 236mm Oak décors; the 194mm Australian timber décors are smooth.
Swell testing
Exceeds EN 13329:2016 + A1:2017, ISO 24336:2005 and NALFA. T Seam – Swell & Seepage Test >80hrs, independently tested.
Slip rating
AS 4586:2013 Appendix A, P3.
Fire test
CHF Value 4.4kW/m2. HF-30 Value 5.4kW/m2. Smoke Value 12% min.
VOC
FloorScore certified — Aspect WR Laminate VOC declaration.
Warranty
20 year Limited Structural Warranty & 20 year Limited Residential Coating Warranty.
Underfloor heating
Suitable for installation over “In-Slab” Hydronic Heating only.
Wet areas
Please check with your local Building Code to confirm suitability for installation in bathrooms, laundries and powder rooms.
An extensive range of trims, coloured scotia and stair nosing is available, please check for availability.
Interior 72hr water resistant warranty incorporating a 3-step process: a T Seam tight lock click profile, moisture-protected painted bevel edges and an independently tested water-resistant core. High definition realism with unique pattern repeats.
2260 x 236 x 12mm — 2.13m2 / Ctn, 4 planks, AC4. European Oak décor, Embossed in Register (EIR) surface. Acacia, Hazelnut, Honeybee, Silverwood, Surfside.
2260 x 194 x 12mm — 1.75m2 / Ctn, 4 planks, AC4. Australian timber décor, smooth surface, no embossing. Blackbutt, Spotted Gum.
Warranty
20 year Limited Structural Warranty & 20 year Limited Residential Coating Warranty.
Wet areas
Please check with your local Building Code to confirm suitability for installation in bathrooms, laundries and powder rooms.
The 2260mm boards are the longest planks in the Aspect range and the ones to choose for open-plan floors, where fewer end joints make the floor read as a single surface. They come in two widths. The 236mm boards carry the European Oak décors with Embossed in Register texture, so the grain you see is also the grain you feel. The 194mm boards carry the Australian timber décors — Blackbutt and Spotted Gum — which have a smooth, unembossed surface.
